Three-layer Battery Test Chamber

As a professional manufacturer of environmental testing equipment, we are committed to providing stable-performance, precision-controlled testing solutions.

The three-layer battery explosion-proof test chamber has a height limit for the use site. Of course, it is mainly used to evaluate the safety performance of batteries in various extreme environments, and is also widely used in the battery manufacturing industry and related R&D laboratories.

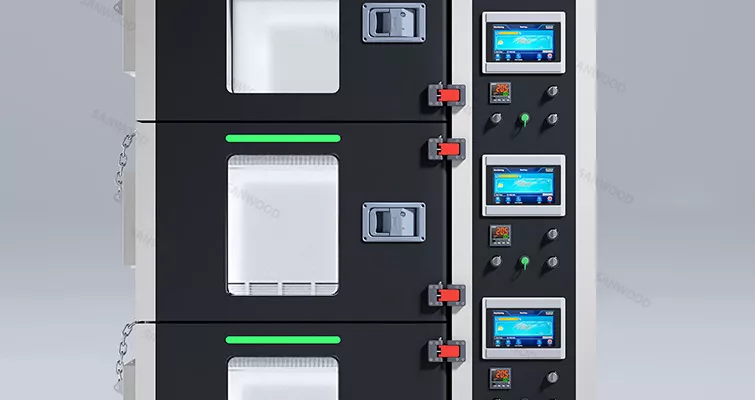

• •Three independent test layers operate simultaneously within one compact footprint, maximizing laboratory space utilization.
• •Each compartment maintains precise, isolated temperature conditions (-40°C to +85°C or wider ranges) with no cross-contamination.
• •Dedicated testing channels per layer enable simultaneous charge-discharge cycling under different protocols and conditions.
• •Multi-layer isolation with independent safety systems per testing compartment.
• •The test equipment is equipped with a high-precision intelligent temperature regulator. The temperature and humidity are displayed on a touch screen. Temperature and humidity recording is optional.

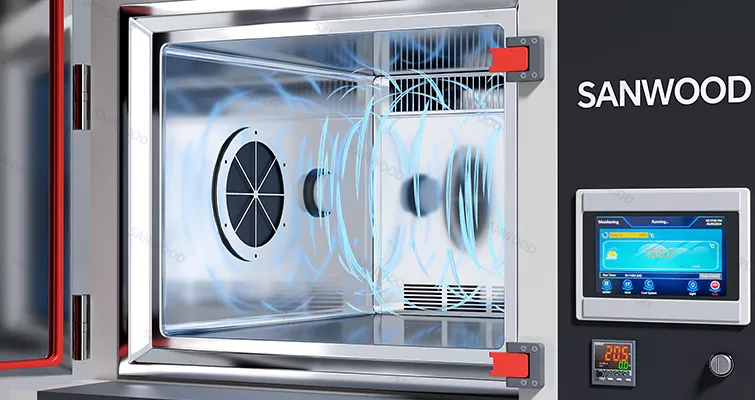

Three-layer battery explosion-proof test chamber is mainly used to test the safety and stability of batteries under various extreme conditions, provide reliable data support for battery manufacturers, optimize battery design and production processes, and improve battery quality and reliability, including overcharge, short circuit, high temperature, high voltage, etc. As follows:

• •Battery temperature cycling performance: The battery explosion-proof test chamber simulates a temperature cycling environment to test the adaptability and stability of the battery under conditions of rapid temperature changes.
• •Battery high and low temperature testing: The battery explosion-proof test chamber can simulate high and low temperature environments to test the battery's high and low temperature resistance under these conditions.
• •Other extreme environment tests: The battery explosion-proof test chamber can simulate extreme environmental conditions such as high voltage and low voltage to comprehensively evaluate the stability and reliability of the battery.

Three-layer battery explosion-proof test chamber should be able to perform reliability tests on batteries, such as cycle life tests, storage life tests, etc.

• •UN/DOT 38.3: United Nations lithium battery testing requirements, which stipulates the safety testing standards for lithium batteries during transportation.
• •IEC 62660-2: Reliability and abuse testing of lithium-ion batteries for electric vehicles. Covers capacity discharge test, high temperature endurance test, temperature cycle test, etc.
• •UL 913: Standard for Safety for Intrinsically Safe Apparatus and Associated Apparatus for Use in Class I, Division 1, Hazardous (Classified) Locations.This standard specifies the requirements for intrinsically safe apparatus, including batteries, for use in hazardous locations.
• •CSA C22.2 No. 157: Explosive atmospheres - Part 1: This standard provides requirements for equipment intended for use in explosive atmospheres, including batteries. The three-layer battery explosion-proof test chamber also complies with testing standards such as EN 60079, IEC 62233,SAE J2464, SAE J2929,IEC 62133,IEC 60086-4, etc

The control system of the Sanwood test chamber adopts the world's leading software and hardware system to ensure that the test chamber operates under preset conditions, provide accurate and reliable experimental data, and help users achieve precise control and data collection of various experimental conditions.

• •Controller: It adopts the controller imported from South Korea Sanwon and the self-developed control system, which can be equipped with Siemens control system and equipped with RS232, RS485 and Ethernet communication ports.
• •Programmable control: It supports setting experimental programs, such as heating, cooling, constant temperature time, etc., and can execute multiple program settings, and supports advance reservation startup function.
• •Multiple languages optional: English, Korean, Russian, Chinese and Japanese.
• •Remote monitoring: Using network remote technology to achieve remote control, the test chamber can be monitored at any time, and the current data can be viewed through the user's PC and mobile phone, which improves the convenience of testing. The specific control system of the test chamber will vary depending on the model. Please read the "Sanwood Environmental Test Chamber Manual" carefully before use and comply with the safety operating procedures.

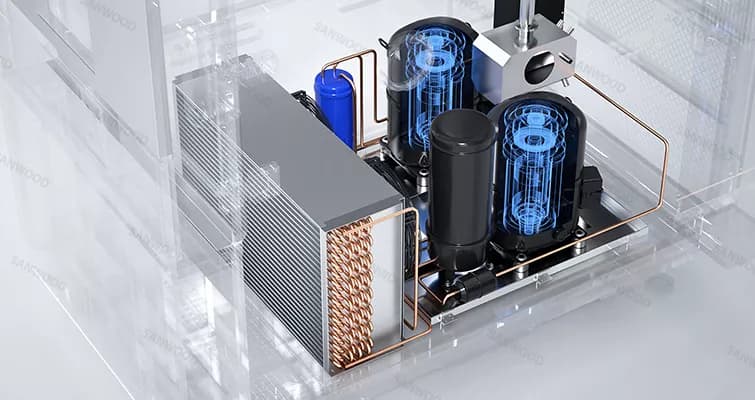

The refrigeration system of the test chamber is a complex and important system. The stability of the refrigeration system is crucial to the accuracy and reliability of the test results.

• •Sanwood Technology has developed a refrigerant hot gas defrosting technology, which effectively melts the frost on the evaporator by injecting high-temperature and high-pressure refrigerant steam into the heat exchanger in the test chamber. This not only ensures that the evaporator does not frost, but also greatly reduces the energy consumption of the equipment.
• •The refrigeration unit adopts an internationally renowned brand.
• •Optimize the layout of the refrigeration system, and adopt VRF (refrigerant flow control) technology based on the PID cold end output principle to achieve low-temperature energy-saving operation, which can reduce energy consumption by 30% under low-temperature conditions.
• •The refrigeration system adopts a modular design, with low failure rate, few welding points, high refrigeration efficiency, good reliability, simple maintenance, and low maintenance cost.
