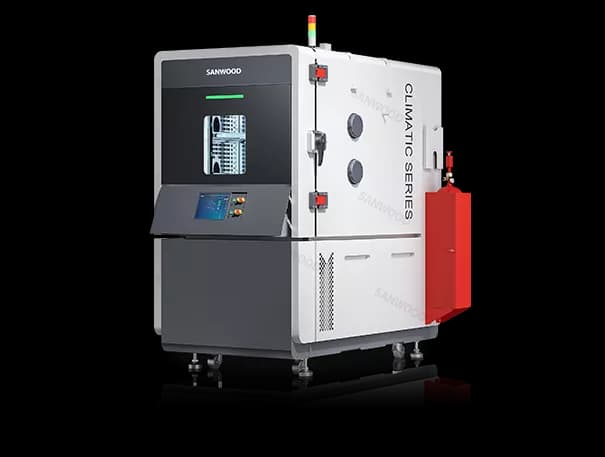

High and Low Temperature Test Chambers

As a professional manufacturer of environmental testing equipment, we are committed to providing stable-performance, precision-controlled testing solutions. Contact us for detailed technical documentation or to schedule a product demonstration, offering reliable support for your quality validation p

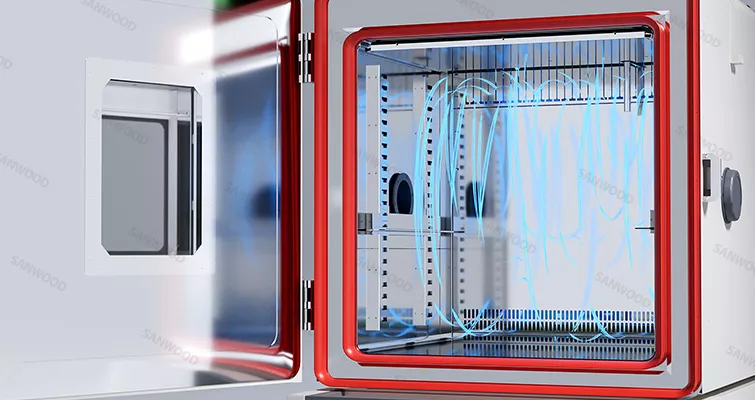

Sanwood high-low temperature test chambers specialize in simulating extreme heat, cold, and rapid temperature change environments to evaluate product performance, reliability, and stability under harsh thermal conditions.

• •Temperature range spans -70°C to +180°C and beyond, accommodating diverse demanding test requirements.
• •Linear temperature ramp rates from 5°C/min to 15°C/min significantly accelerate testing cycles.
• •Advanced airflow design ensures uniform temperature distribution throughout the chamber for consistent results.
• •Multiple safety protections, including independent over-temperature protection and compressor delay, ensure worry-free operation.

The high and low temperature test chambers are mainly used to test the performance indicators of parts and materials of related products such as electronics and electrical engineering, automobiles and motorcycles, aerospace, ship weapons, colleges and universities, scientific research institutions, etc. under high temperature and low temperature (alternating) cyclic changes.

• •Electronic and electrical industry: used to test the performance and reliability of electronic components, circuit boards, complete machines and other products under high and low temperature environments.
• •Automotive industry: Test the performance of automotive parts such as engines, batteries, body materials, etc. under extreme climate conditions to ensure that the car can maintain stable performance in various complex environments.
• •Aerospace industry: Test the performance of aircraft parts under extreme climatic conditions to ensure that they can work normally under various environmental conditions.
• •Scientific research field: Provide stable environmental conditions for scientific researchers for material research, biological experiments, etc.

The working principle of the high and low temperature test chamber is mainly based on cooling and heating cycles.

• •MIL-STD-810: US military standard, involving a variety of environmental tests, including high and low temperature test methods, very suitable for military and aerospace products
• •ISO 16750: An automotive industry standard that provides requirements for testing automotive electronic components under different environmental conditions, including temperature and humidity changes.
• •SAE J1211: A standard for automotive electronic components that covers reliability testing under extreme temperatures. It also complies with IEC 60571, NB/T 31004, GJB 150, IEC, MIL and other test standards.

The control system of the Sanwood test chamber adopts the world's leading software and hardware system to ensure that the test chamber operates under preset conditions, provide accurate and reliable experimental data, and help users achieve precise control and data collection of various experimental conditions.

• •Controller: It adopts the controller imported from South Korea Sanwon and the self-developed control system, which can be equipped with Siemens control system and equipped with RS232, RS485 and Ethernet communication ports.
• •Programmable control: It supports setting experimental programs, such as heating, cooling, constant temperature time, etc., and can execute multiple program settings, and supports advance reservation startup function.
• •Multiple languages optional: English, Korean, Russian, Chinese and Japanese.
• •Remote monitoring: Using network remote technology to achieve remote control, the test chamber can be monitored at any time, and the current data can be viewed through the user's PC and mobile phone, which improves the convenience of testing. The specific control system of the test chamber will vary depending on the model. Please read the "Sanwood Environmental Test Chamber Manual" carefully before use and comply with the safety operating procedures.

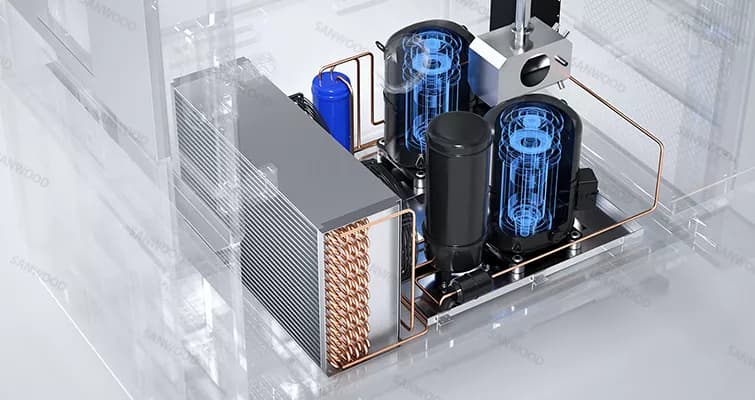

The refrigeration system of the test chamber is a complex and important system. The stability of the refrigeration system is crucial to the accuracy and reliability of the test results.

• •Sanwood Technology has developed a refrigerant hot gas defrosting technology, which effectively melts the frost on the evaporator by injecting high-temperature and high-pressure refrigerant steam into the heat exchanger in the test chamber. This not only ensures that the evaporator does not frost, but also greatly reduces the energy consumption of the equipment.
• •The refrigeration unit adopts an internationally renowned brand.
• •Optimize the layout of the refrigeration system, and adopt VRF (refrigerant flow control) technology based on the PID cold end output principle to achieve low-temperature energy-saving operation, which can reduce energy consumption by 30% under low-temperature conditions.
• •The refrigeration system adopts a modular design, with low failure rate, few welding points, high refrigeration efficiency, good reliability, simple maintenance, and low maintenance cost.
